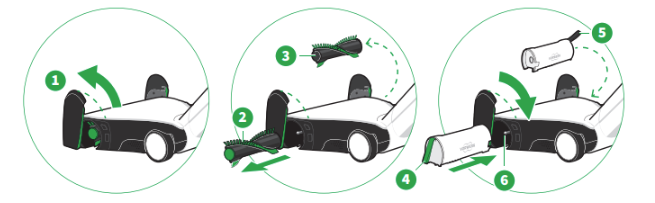

Insert freshener kit FK7

1 Fold the side flaps of the electric brush upwards in a rotating movement (1).
2 Pull the round brushes (2) and (3) off the drive shaft.
3. insert the freshener kit with the green loop (4) on the left and the freshener kit with the black loop (5) on the right. The Vorwerk logo points to the rear in each case.
4 Press the freshener kit onto the drive shaft (6) until it is fully inserted.
5 Check that it is correctly seated on the drive shaft. 6.
6. fold the side flaps (1) down again and engage them.

Incorporate Kobosan active

1 . Spread the Kobosan active evenly over your carpet.
2. switch on the cordless hoover.
The suction motor remains switched off automatically when the freshener kit is inserted. The coarse material flap and sealing lip of the electric brush open so that the Kobosan active can be worked in.

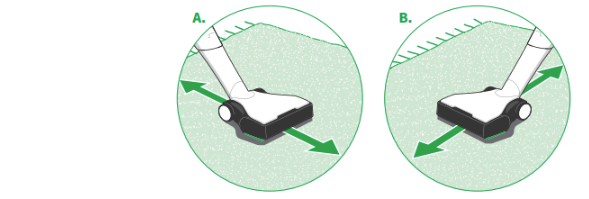

3. guide the electric brush with the freshener kit back and forth in adjacent paths (A).

4 Then guide the electric brush across the surface (B).
5 Work in the Kobosan active for up to three minutes per square metre, depending on the degree of soiling.
6 Then leave it to dry with the windows open. The drying time should be at least half an hour, depending on the type of carpet and room temperature

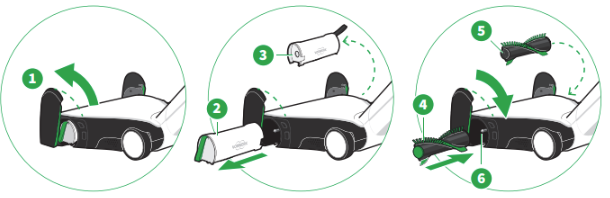

Insert the brush

1 Fold the side flaps upwards in a rotating movement (1).
2 Pull the freshener kit (2) and (3) off the drive shaft.
3 Insert the round brush with the green end (4) on the left and the round brush with the black end (5) on the right. 4.
4. press the round brushes onto the drive shaft (6) with a slight twist until they are fully inserted.
5 Check that the round brushes are correctly seated on the drive shaft.
6. fold the side flaps (1) down again and engage them.

Kobosan active aspiration

1. make sure that you have enough Premium filter bags. For 500 g of Kobosan active, you will need 1-2 Premium filter bags depending on the degree of soiling of the carpet.
2 Vacuum Kobosan active with the electric brush. The dirt in the carpet is bound in Kobosan active. Any residues remaining in the carpet do not cause any harm. They will be vacuumed away over time through daily maintenance.

Cleaning and storage

Clean the freshener kit immediately after use under cold or lukewarm running water so that it can be stored properly.

1 Clean the electric brush immediately after use with a dry or damp cloth.
2 If there are residues of Kobosan in the suction channel of the hoover, you can remove them with a soft, dry cloth.
3 To do this, lift the brushes (1) out of the cassettes with your finger.
4. hold the brushes so that the water cannot run directly into the drive openings (2).
5 Rinse the cassettes (3).
6 Shake the water off the components of the freshener kit.
7. place the brushes on the drive openings (2) to dry. 8.
8. then reinsert the dry brushes into the cassettes. Ensure that you insert the brush with the green end (4) into the housing with the green loop (5). Insert the brush with the black end (6) into the housing with the black loop (7).
